Traffic Control Power Supplies
FEATURES:
- Caltrans Approved and TEES Compliant
- For use in Caltrans TEES 332, 334, 336, 342, 344, and 346 Series cabinets
- BABAA Compliant (standard or optional, depending on model)
- For use in Advanced Transportation Controller High Voltage cabinets
- For use in NEMA cabinets
- For use in Traffic Intersection Control Systems
- For use in LED Road Signs
- High Efficiency / High Reliability
- For use in existing and new configurations
- Single and Multiple Outputs Available
- Custom Configurations Available
- Caltrans Power Supply
- TEES Power Supply
- ATC Power Supply
- NEMA Power Supply
- Description
- Models
- Videos
- BABAA
Description
Jasper Electronics designs and manufactures Traffic Control Power Supplies which are fully compliant to the State of California Department of Transportation (CalTrans) Transportation Electrical Equipment Specification (TEES) dated November 5, 2020 for use in Caltrans TEES 332, 334, 336, 342, 344, and 346 Series cabinets. Jasper also offers compliant units for use in Advanced Transportation Controller (ATC) High Voltage cabinets, NEMA cabinets, state of the art Traffic Intersection Control Systems, modern LED road signs, and other related applications. If you’re upgrading an older system, Jasper offers smaller, lighter, more efficient, and much more reliable units than legacy supplies.
Jasper’s traffic control power supplies are BABAA Compliant either as standard or optionally, depending on the model. Please refer to the Models tab chart for more information. These power supplies are the first choice for many state departments of transportation including California, New York, Colorado, Georgia, and Alabama, among others. Custom Caltrans power supplies and TEES power supplies are our specialty! Please contact us with your specifications so we can offer a solution!
| Model | Watts | Size (LxHxW) | Outputs | Approved | Application | BABAA Compliant (Standard / Optional) | Specs | Get Quote |
|---|---|---|---|---|---|---|---|---|
| TC2070-4A | 70 | 3.18 x 6.97 x 8.87" | 5V, +/-12V, and +12V ISO | CalTrans | 332, 334, 336 | Optional | ||
| TC2070-4N | 70 | 3.18 x 6.97 x 8.87" | 5V, +/-12V, and +12V ISO | NEMA | TS1, TS2 | Optional | ||

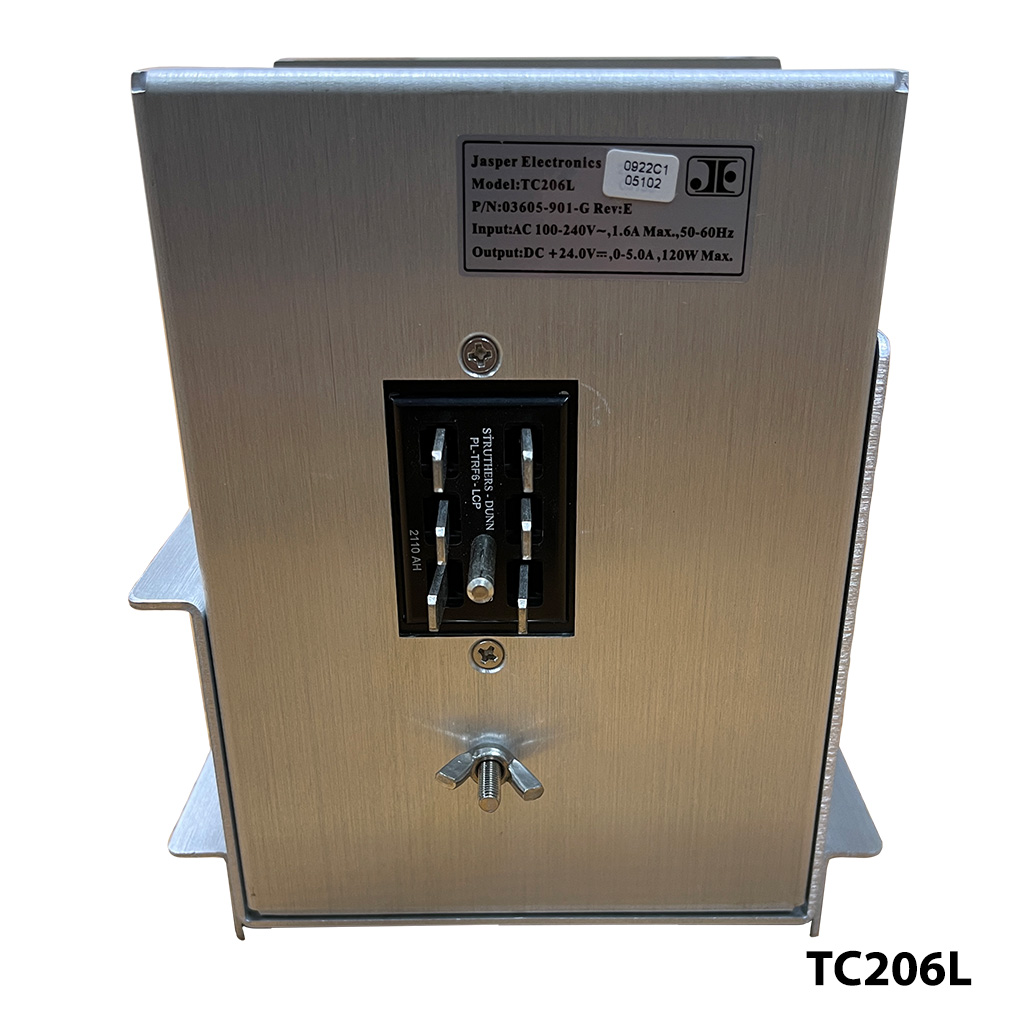

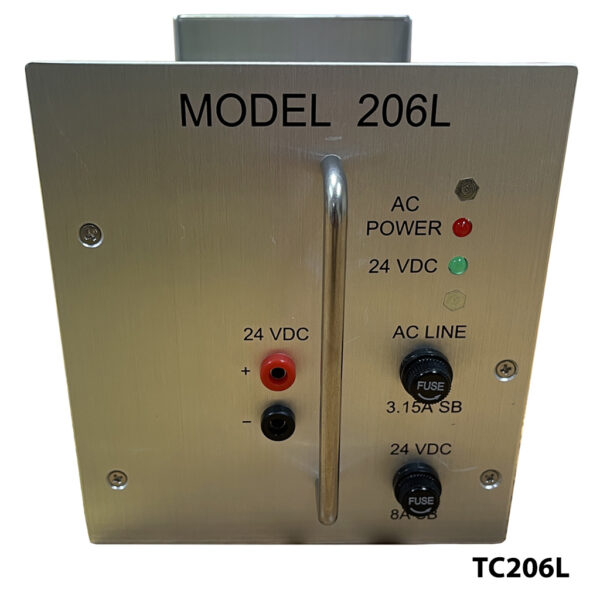

| TC206L | 120 | 5.50 x 6.00 x 7.28" | 24V @ 5A | CalTrans | 332, 334, 336 | Standard | ||

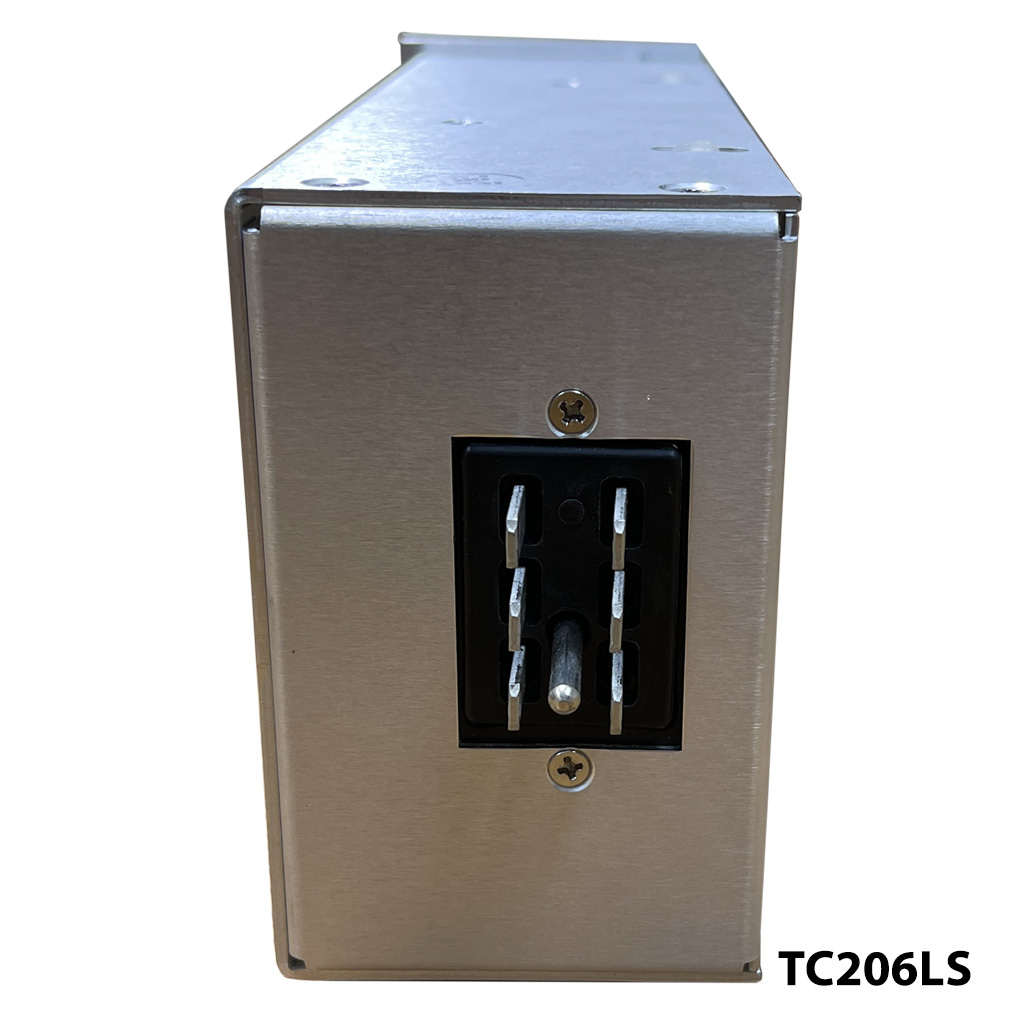

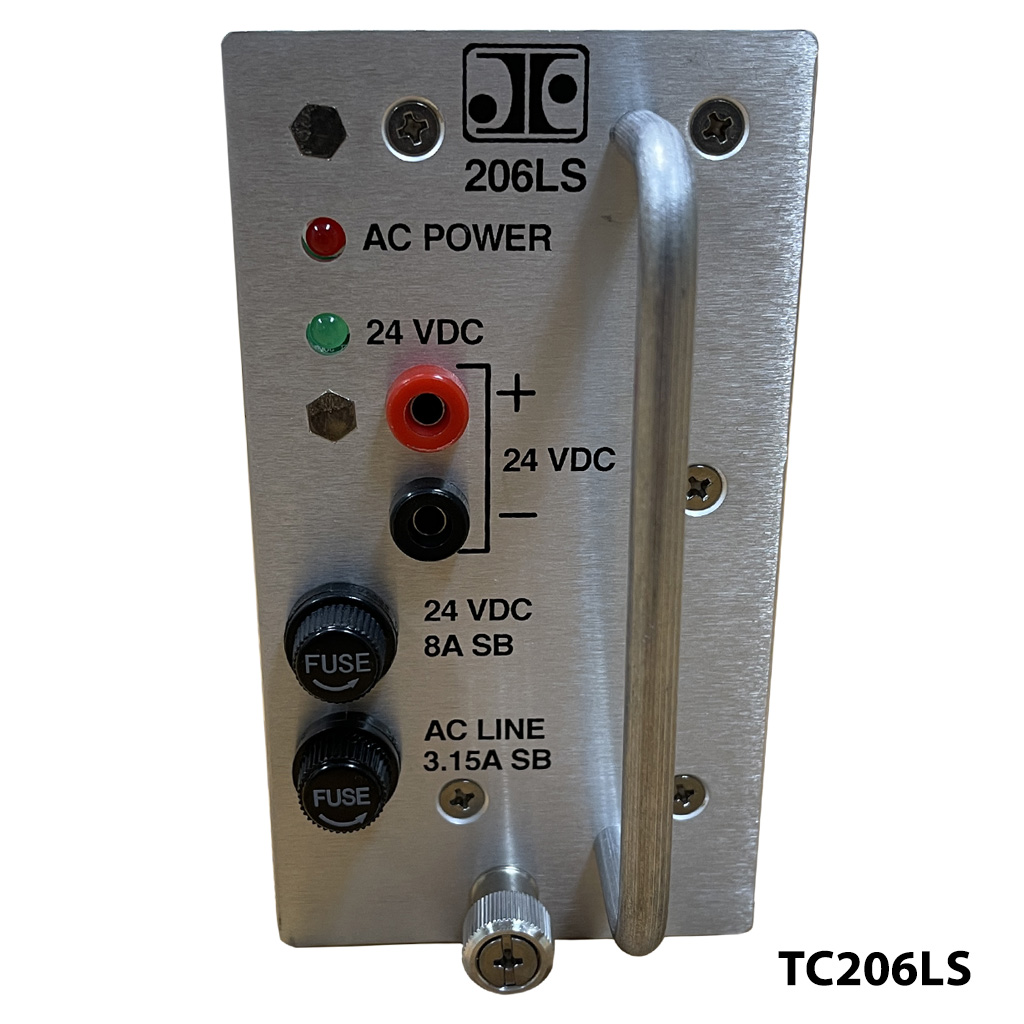

| TC206LS | 120 | 2.85 x 5.15 x 8.55" | 24V @ 5A | CalTrans | 332, 334, 336 | Standard | ||

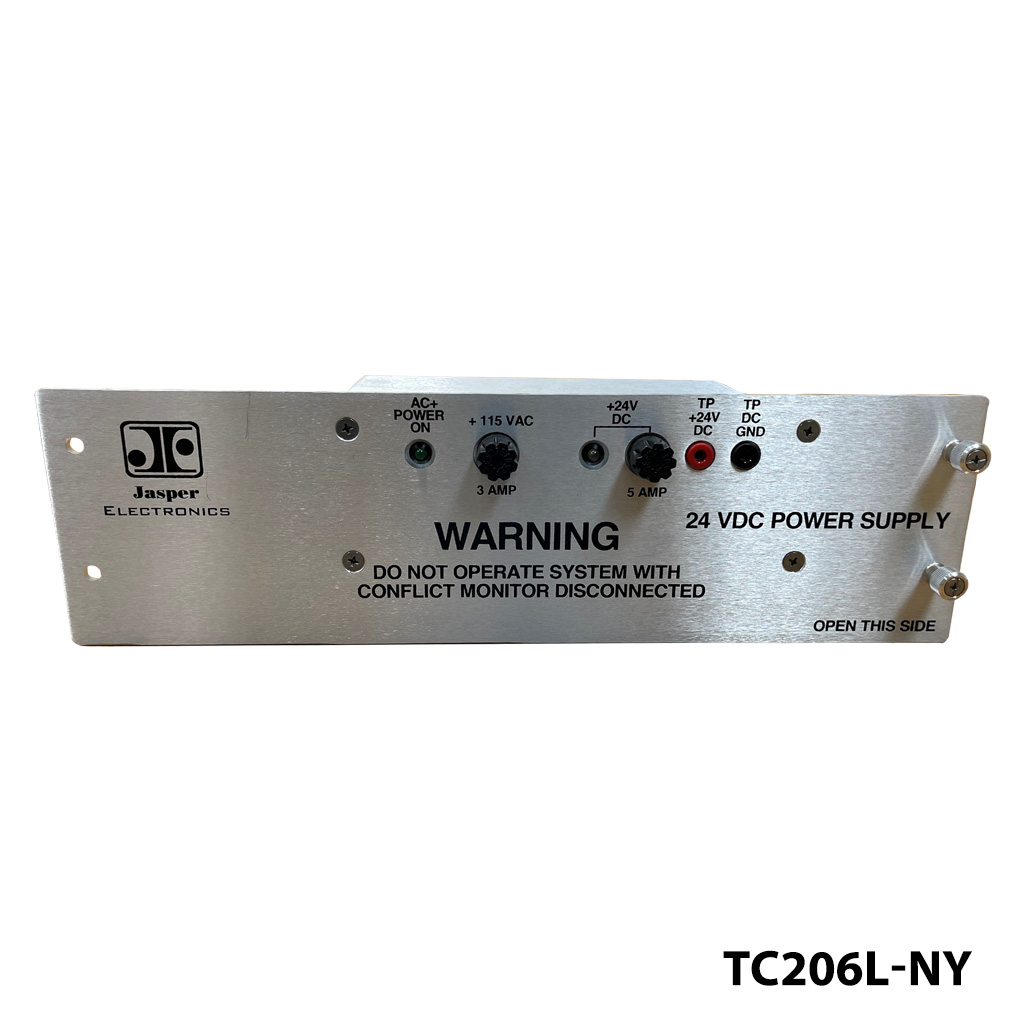

| TC206L-NY | 120 | 15.20 x 4.35 x 4.33" | 24V @ 5A | NYSDOT (Pending) | 332, 334 | Standard | ||
| TC2217 | 120 | 6.90 x 1.70 x 4.50 | 24V @ 3A, 48V @ 1A | (Pending) | Advanced Transportation Controller (ATC) High Voltage Cabinets | Optional | ||

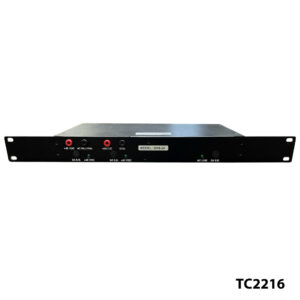

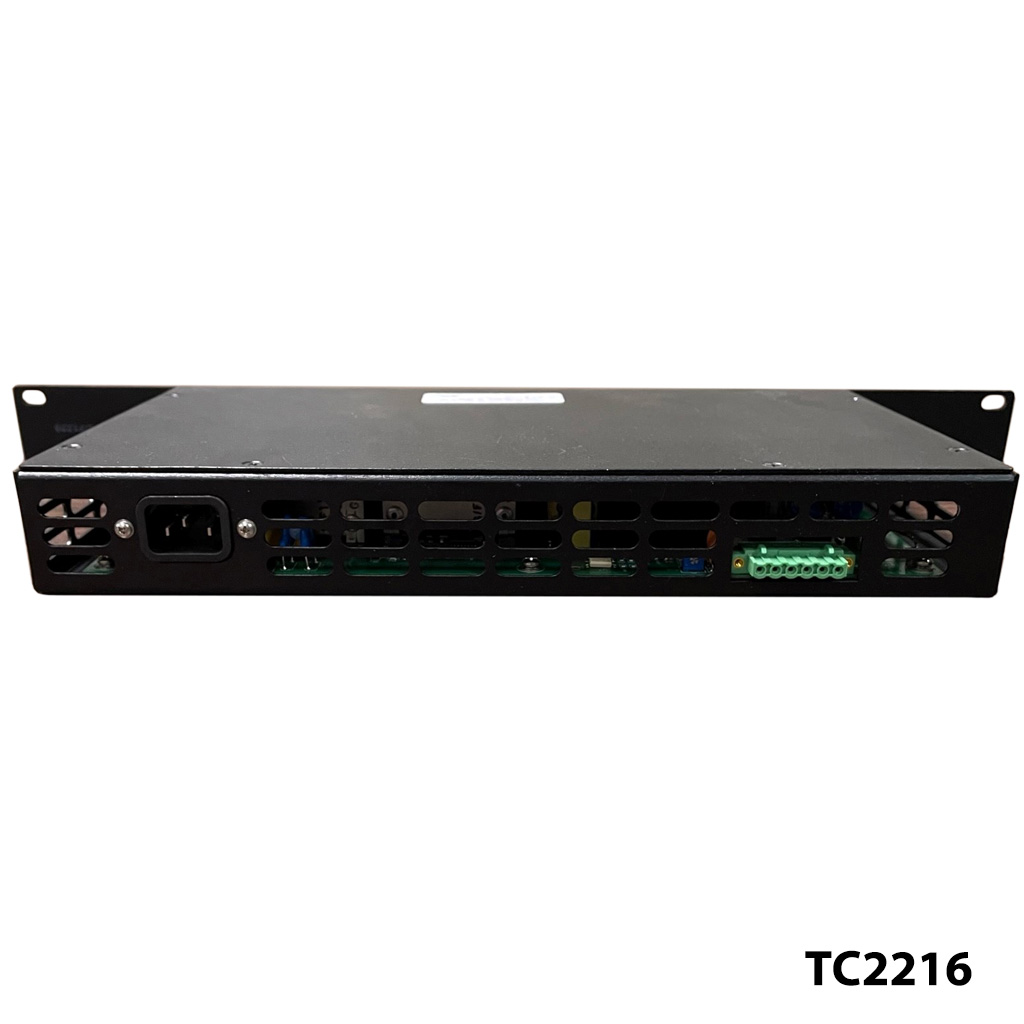

| TC2216 | 175 | 7.0 x 1.72 x 19.0" | 24V @ 5A, 48V @ 1A | (Pending) | Advanced Transportation Controller (ATC) High Voltage Cabinets | Optional | ||

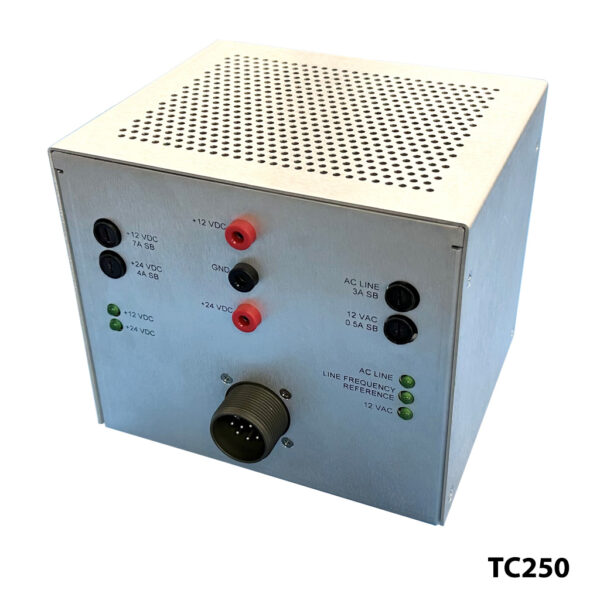

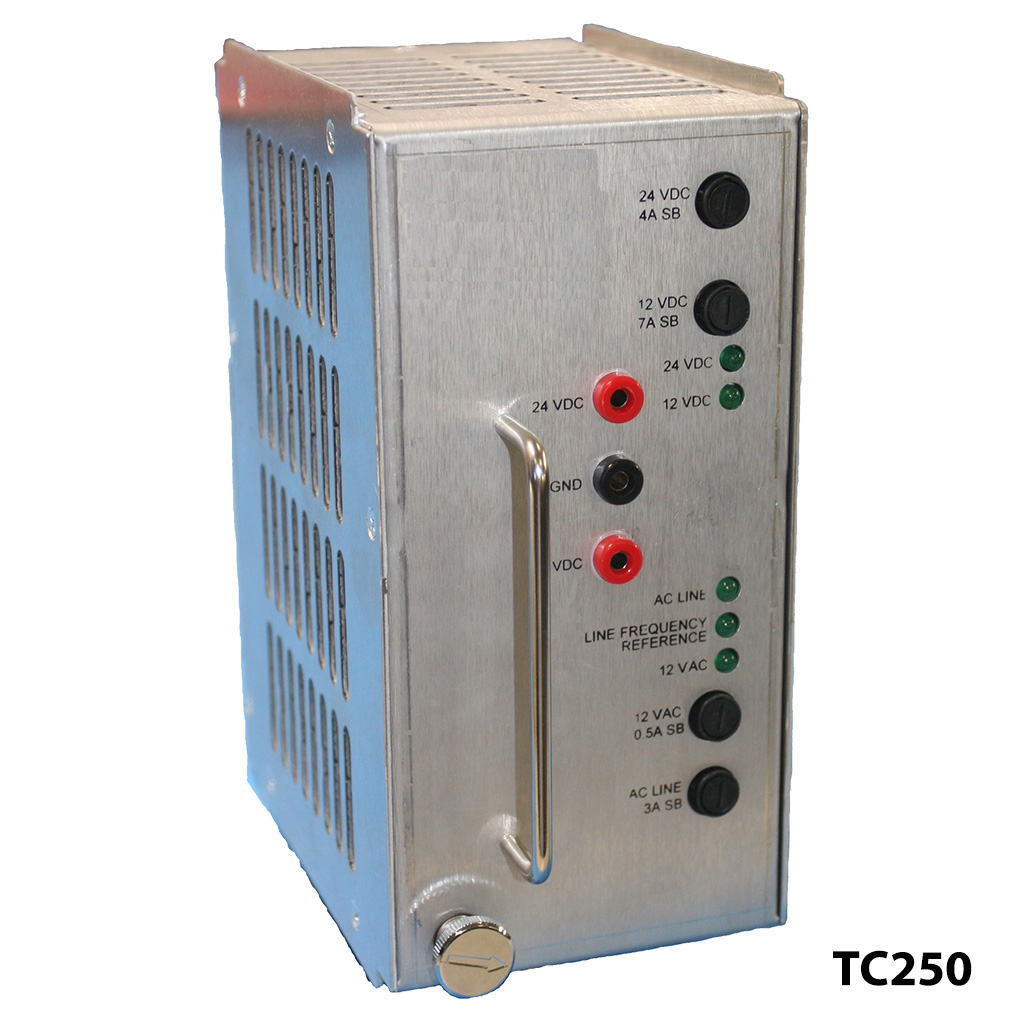

| TC250 | 180 | 6.60 x 6.00 x 5.50" | 12V @ 5A, 24V @ 3A, 12VAC @ 0.25A | (Pending) | TS1, TS2 | Optional | ||
| TC206E | 240 | 5.50 x 6.00 x 7.28" | 24V @ 10A | CalTrans | 332, 336, 342, 344, 346 | Standard | ||

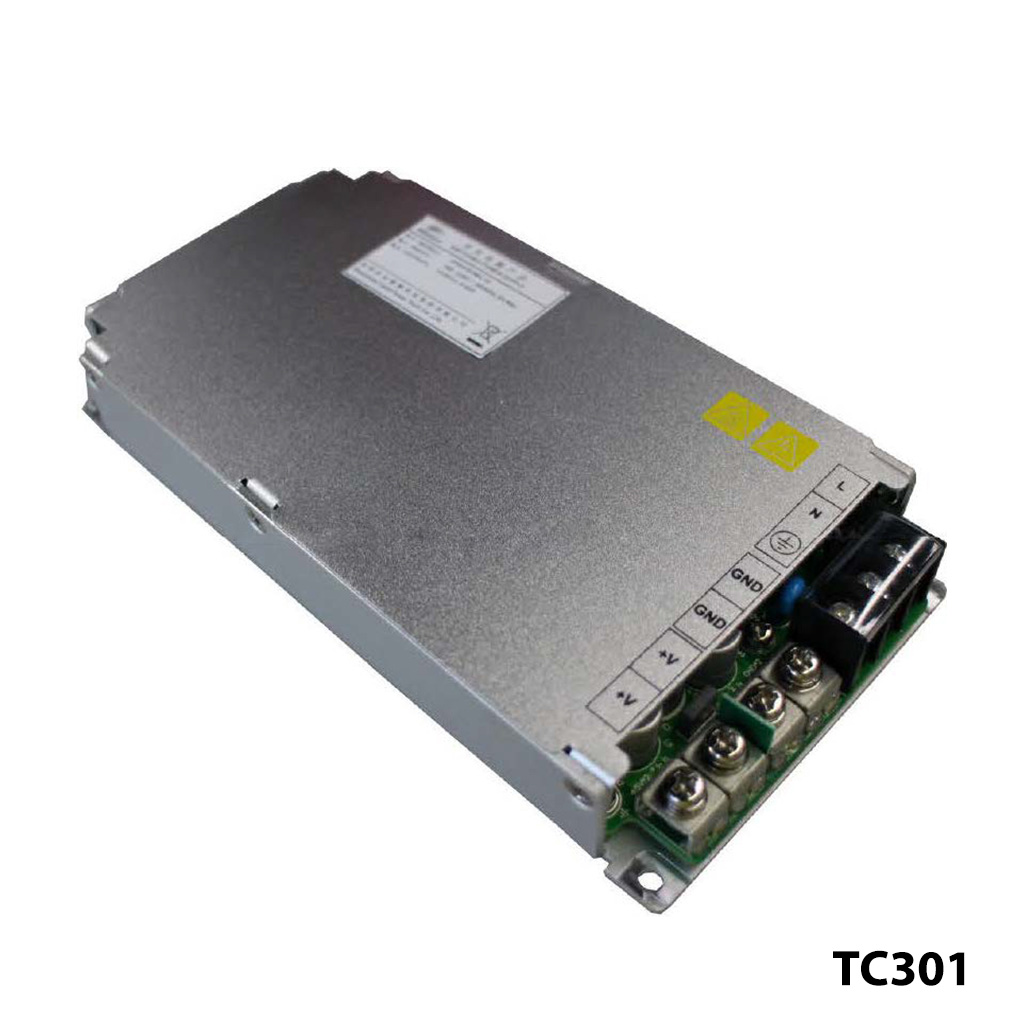

| TC301 | 300 | 6.5 x 1 x 3.35" | 5V @ 60A | (Pending) | LED Road Signs | Optional | ||

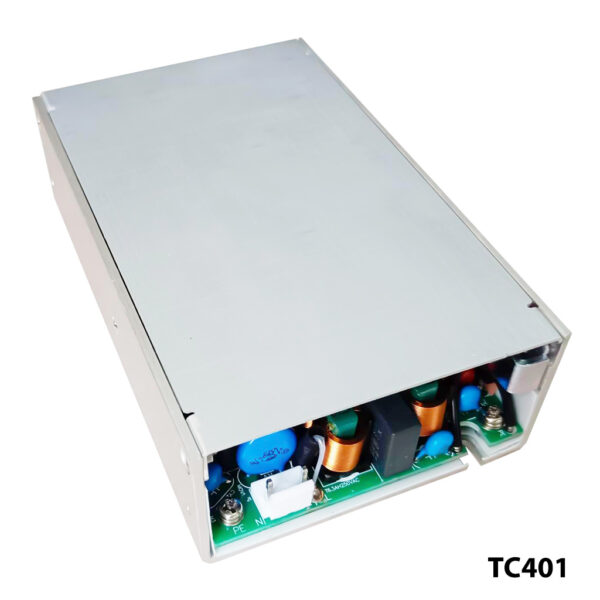

| TC401 | 400 | 3.23 x 1.61 x 5.0" | 12V @ 0.5A, 48V @ 8.3A | (Pending) | Traffic Intersection Control Systems | Optional |
The Build America, Buy America Act (BABAA) status of Jasper Electronics Traffic Control Power Supplies are listed below. Going forward, our customers will be able to order these units in either BABAA-compliant configuration where required, or in BABAA non-compliant configuration (for cost savings purposes.)
| MODEL DESIGNATION | APPLICATION | AVAILABLE IN BABAA COMPLIANT CONFIGURATION | AVAILABLE IN NON-BABAA COMPLIANT CONFIGURATION |
|---|---|---|---|
| TC2070-4A | 332, 334, 336 | YES - OPTIONAL | YES - STANDARD |
| TC2070-4N | NEMA TS1, TS2 | YES - OPTIONAL | YES - STANDARD |
| TC206L | 332, 334, 336 | YES - STANDARD | YES - OPTIONAL |
| TC206LS | 332, 334, 336 | YES - STANDARD | YES - OPTIONAL |
| TC206L-NY | 332, 334 | YES - STANDARD | YES - OPTIONAL |
| TC2217 | ATC | YES - OPTIONAL | YES - STANDARD |
| TC2216 | ATC | YES - OPTIONAL | YES - STANDARD |
| TC250 | NEMA TS1, TS2 | YES - OPTIONAL | YES - STANDARD |
| TC206E | 332, 336, 342, 344, 346 | YES - STANDARD | YES - OPTIONAL |
| TC301 | LED Road Signs | YES - OPTIONAL | YES - STANDARD |
| TC401 | General Purpose | YES - OPTIONAL | YES - STANDARD |
| PDA2LS | 336LS, 346LX | YES - STANDARD | NO |
| TC2248 | ATC | YES - OPTIONAL | YES - STANDARD |
Jasper’s BABAA-compliant products are final-assembled in our Anaheim, CA facility. Jasper also has sister facilities in Bergenfield, NJ and Eatontown, NJ for additional production capacity if needed.
Lead times may vary and minimum order quantities may apply, depending on model. Please consult the factory for a formal quote specifically requesting BABAA Compliant and / or BABAA Non-Compliant model(s) for more details.
