JBPA-C150-120 Series
FEATURES:
- Output Power: 150W
- Input Voltage Range: 100–240 VAC Single Phase
- Output Spec: 12V @ 12.5A, 5V Standby @ 2.5A
- Efficiency: up to 89%
- Temperature: -40°C to +70°C Operation
- Signals: Power Failure, PS ON
- EMI- EN61000 Class A
- UL/Demko Safety Approved
- Description
- Data Sheets
Description

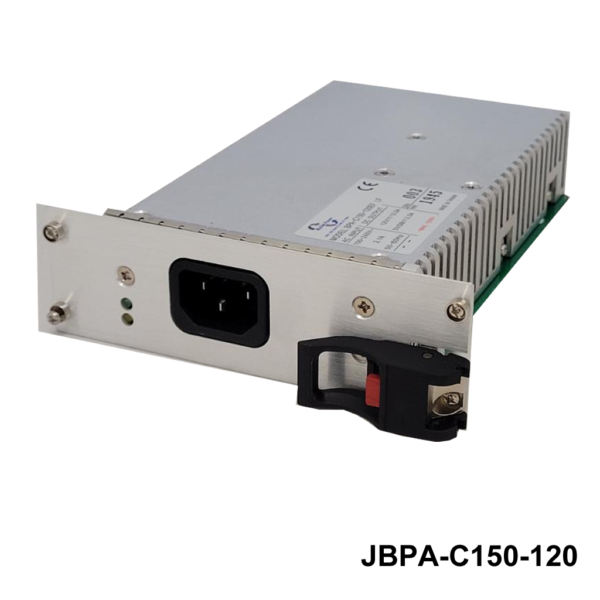

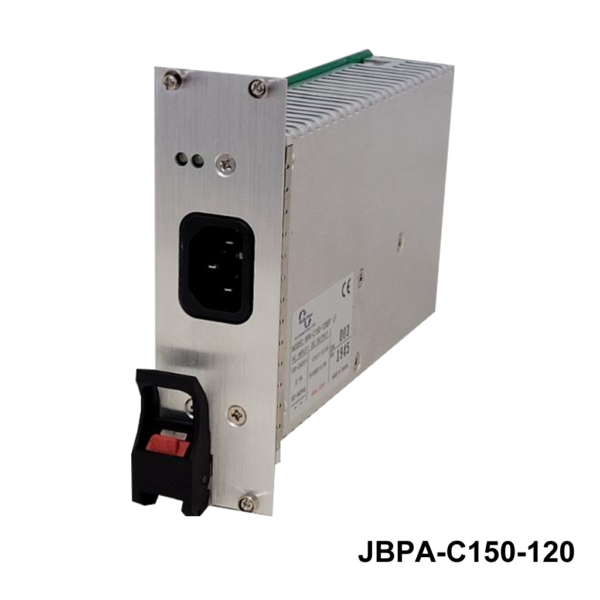

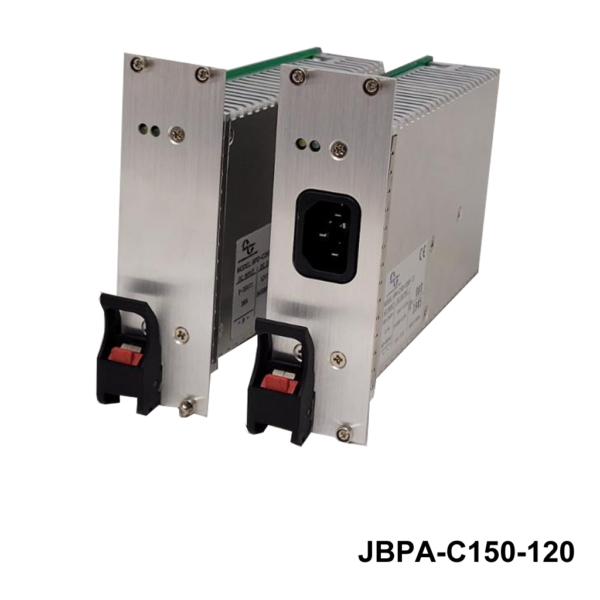

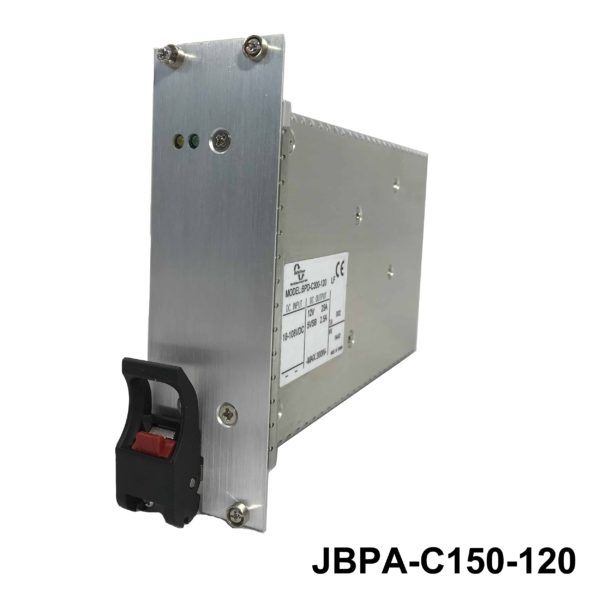

The JBPA-C150-120 is a highly reliable cPCI Serial Power supply used for CompactPCI Serial Systems. It’s capable of delivering up to 150W with 10CFM forced-air cooling. With a full range input of 90- 264VAC, this power supply module achieves the highest performance and efficiency by incorporating LLC half bridge topology and synchronous rectification. The JBPA-C150 -120 also includes PMBus interface to monitor and control all essential functions of the power supply module. Custom controls are available optionally – consult factory for details.
