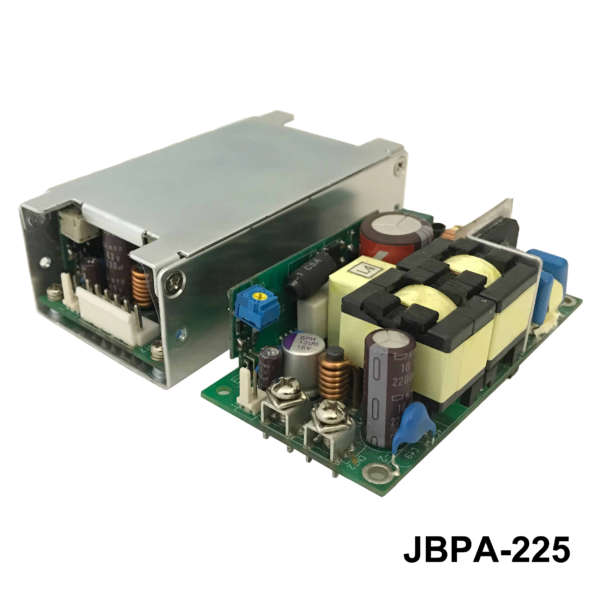

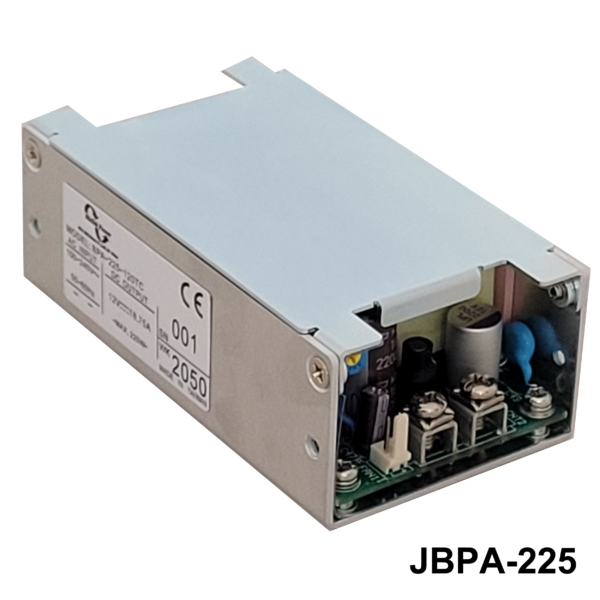

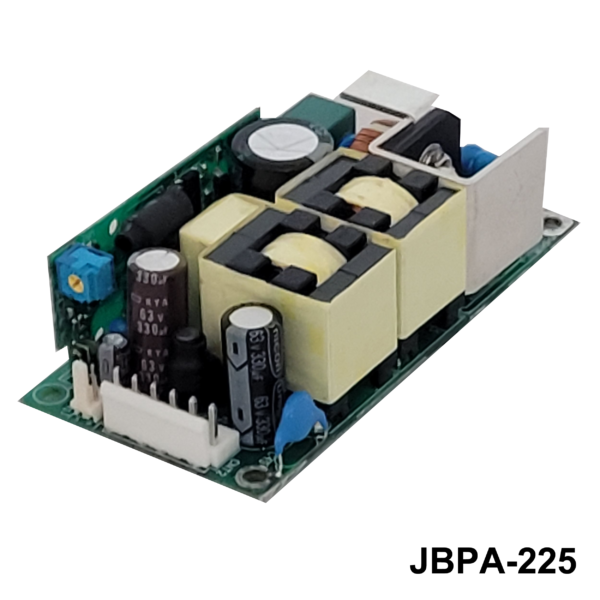

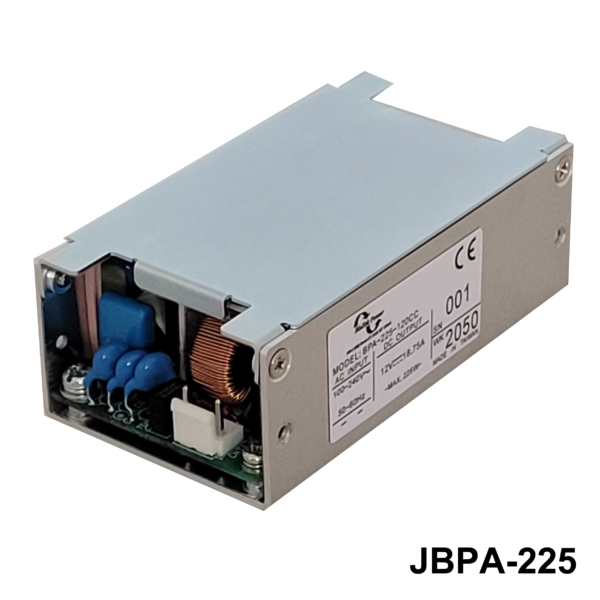

JBPA-225 Series

FEATURES:

  • Output Power: 225W
  • Input Voltage Range: 100–240 VAC Single Phase
  • Output Spec: 12V @ 18.75A, 5V Standby @ 2A
  • Efficiency: 90%
  • Temperature: -40°C to +70°C Operation
  • Signals: AC OK, DC OK, Alert Signals
  • EMI- EN55022 Class A
  • UL/Demko Safety Approved
INPUT VOLTAGE: 100-240 VAC
OUTPUT VOLTAGE(S) 12-56 VDC
POWER RATING: 225 WATTS

Description

The JBPA-225 Series is a highly reliable and efficient power supply. It’s capable of delivering 120W convection-cooled and up to 225W with force air cooling via 10CFM Fan. It offers a variety of single voltages output ranging from 12 to 56V, with full range input 90-264VAC. The JBPA-225 Series also minimizes no load power, reducing running cost.

JBPA-225 Series Datasheet
