DC-DC CONVERTERS, 1000 Watts, JSD 1000 SERIES
- Low Profile 1U
- Fully Isolated Input/Output
- High Power Density
- 2000 VAC I/O Isolation
- Remote ON/OFF Control
- Forced Air Cooling, Internal Fan
- 12V, 25A Aux Output
- OV, OL, OT Protection
- Remote Sense
- Description
- Models
- Specifications
- Available Options
- Data Sheets
Description

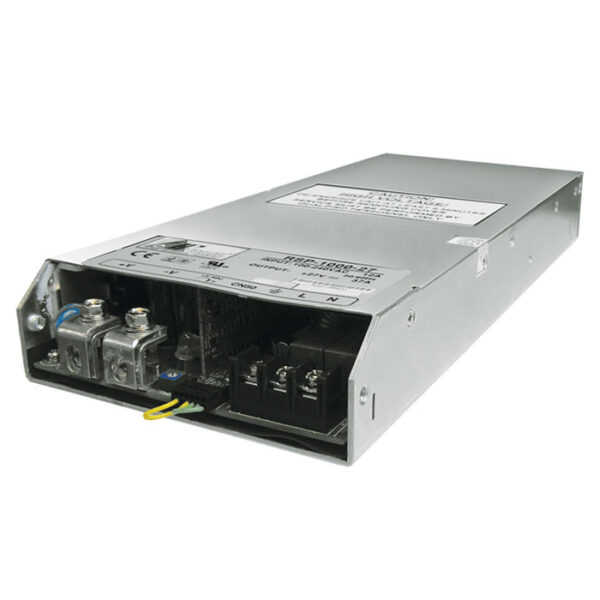

The JSD 1000 Watt DC-DC Converter is a compact, high power, single output DC-DC Converter. This unit is available up to 1000 Watts with outputs of 12 Volts, 24 Volts and 48 Volts. Wide input voltage range of 19 Volts to 72 Volts and 72 Volts to 144 Volts along with Robust construction and 1U low profile makes them ideal for harsh environment Industrial and Commercial applications. The TSD-1000 watt DC-DC Converter is available in Ruggedized “COTS” versions for military applications. Please contact us today for a comprehensive price quote.
| Model # | Output Voltage | Max. Current | |
|---|---|---|---|
| JSD-1000L-12 | 12vdc | 60A | QUOTE |
| JSD-1000L-24 | 24vdc | 40A | QUOTE |
| JSD-1000L-48 | 48vdc | 21A | QUOTE |
| Model # | Output Voltage | Max. Current | |
|---|---|---|---|
| JSD-1000H-12 | 12vdc | 60A | QUOTE |
| JSD-1000H-24 | 24vdc | 40A | QUOTE |
| JSD-1000H-48 | 48vdc | 21A | QUOTE |
Other voltage and current combinations are available, contact us for your exact needs.
INPUT SPECIFICATIONS:
Input: 125 – 350 VDC
Inrush Current: 40A Max
Efficiency: 85% typical (depending on output model)
Hold-up time: 16ms at full load (minimum)
OUTPUT SPECIFICATIONS
Minimum Load: none
Regulation: Line ±0.5% Load ±0.5%
Ripple/Noise: 150mV – 200mV peak to peak maximum (20 MHz)
Set Point Accuracy: ±1%(except 5V=±2%) (maximum)
Output voltage adj: ±10% minimum
Overcurrent Protection: 105-125% automatic recovery Constant Current
Overvoltage Protection: 115-140% of V1 nominal
Overtemperature Protection: Heatsink Temp. 90°C ± 5°C Auto Recovery
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature: -20°C to +50°C. Derate to 50% at +70°C
Storage Temperature: -40°C to +85°C max 95% Relative Humidity
Cooling: Internal ball bearing DC fan
Humidity: 20-90% RH non condensing
Vibration: 10-500Hz, 2G 10min/1cycle for 60 min (3 axes)
Shock: 20G Peak Acceleration
Weight: Approx: 4 LBS
Size: 11.61” x 5” x 1.61”
- Hot Swap
- Parallel Operation
- ORing Diode for Redundant Operation
- Rack / Panel Mount
- Ruggedized for shock & vibration
- Conformal Coating
