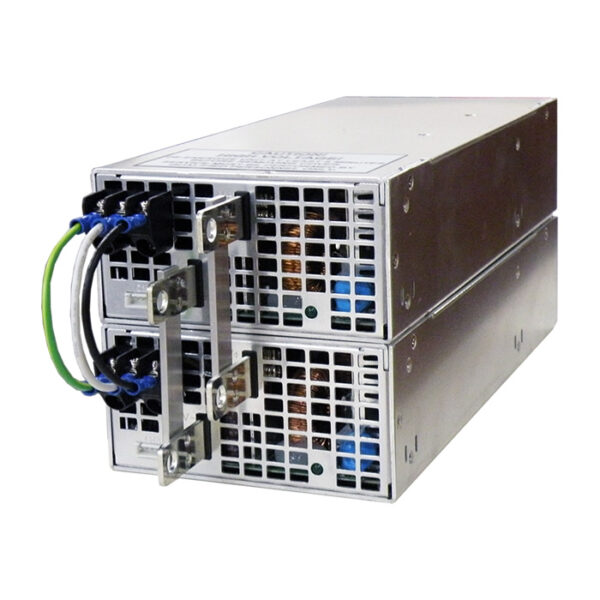

AC-DC Switching Power Supply, 1,200~2,000 Watts, JCD-1K SERIES

  • Full Range Input
  • Low Noise and Ripple
  • Built In DC Fan For Cooling
  • Current Share Function
  • DC Good Signal
  • Remote On/Off & Remote Sense Functions
  • Rugged Construction
  • Light Weight
POWER RATING: 1200W-2000W
VOLTAGE: 5 Volts, 12 Volts, 15 Volts, 24 Volts, 28 Volts, 48 Volts
TYPE: PARALLEL OR REDUNDANT OPERATION
GET A QUOTE

Description

The TCD-1K Series is a compact, high power single output AC-DC switching power supply. This unit is available in 1200, 1500 & 2000 Watt versions with outputs ranging from 5 Volts, 12 Volts, 15 Volts, 24 Volts, 28 Volts and 48 Volts. Robust design makes them ideal for either commercial and  harsh environment industrial applications. The TCD-1K Series is available in ruggedized “COTS” versions for military applications. Please contact us today for a comprehensive price quote.

1200 WATTS
Model #Output VoltageMax. Current
JCD-1K2-055vdc200A QUOTE
JCD-1K2-1212vdc100A QUOTE
JCD-1K2-1515vdc80A QUOTE
JCD-1K2-2424vdc50A QUOTE
JCD-1K2-2828vdc42A QUOTE
JCD-1K2-4848vdc25A QUOTE
1500 WATTS
Model #Output VoltageMax. Current
JCD-1K5-055vdc150A QUOTE
JCD-1K5-1212vdc125A QUOTE
JCD-1K5-1515vdc100A QUOTE
JCD-1K5-2424vdc62A QUOTE
JCD-1K5-2828vdc53A QUOTE
JCD-1K5-4848vdc31A QUOTE
2000 WATTS
Model #Output VoltageMax. Current
JCD-1K9-055vdc200A QUOTE
JCD-1K9-1212vdc166A QUOTE
JCD-1K9-1515vdc133A QUOTE
JCD-1K9-2424vdc83A QUOTE
JCD-1K9-2828vdc71A QUOTE
JCD-1K9-4848vdc41A QUOTE

Other voltage and current combinations are available, contact us for your exact needs.

INPUT SPECIFICATIONS:

  • Auto Line Selection
  • 3 Phase Input
  • Parallel Operation
  • ORing Diode for Redundant Operation
  • Rack / Panel Mount
  • Ruggedized for shock & vibration (MIL-STD-810)
  • 400Hz Operation
  • Conformal Coating
  • LVBD (Battery Back-up)
